UBR PoE

Compliance

Protection
‍

Port
‍

IP Rating

Input Voltage Range

Operating Temperature

Surge Protection

Variants

Datasheet
‍

Indoor

HF-PoE20-AC/DC

IEEE802.3af / IEEE802. 3at- 4 pairs

All limited links

Full protection OCP (Over-Current-Protection) & OVP (Over-Voltage-Protection)

Antenna Variants

1Gb PoE
‍

IP Rating

IP30

Frequency Band

100-264V AC & 36-75V DC

Pole & Tower Mount support

0⁰C to 45⁰C

Up/down Tilt support

2 & 6kV

Key characteristic

AC and DC

Key characteristic

Download

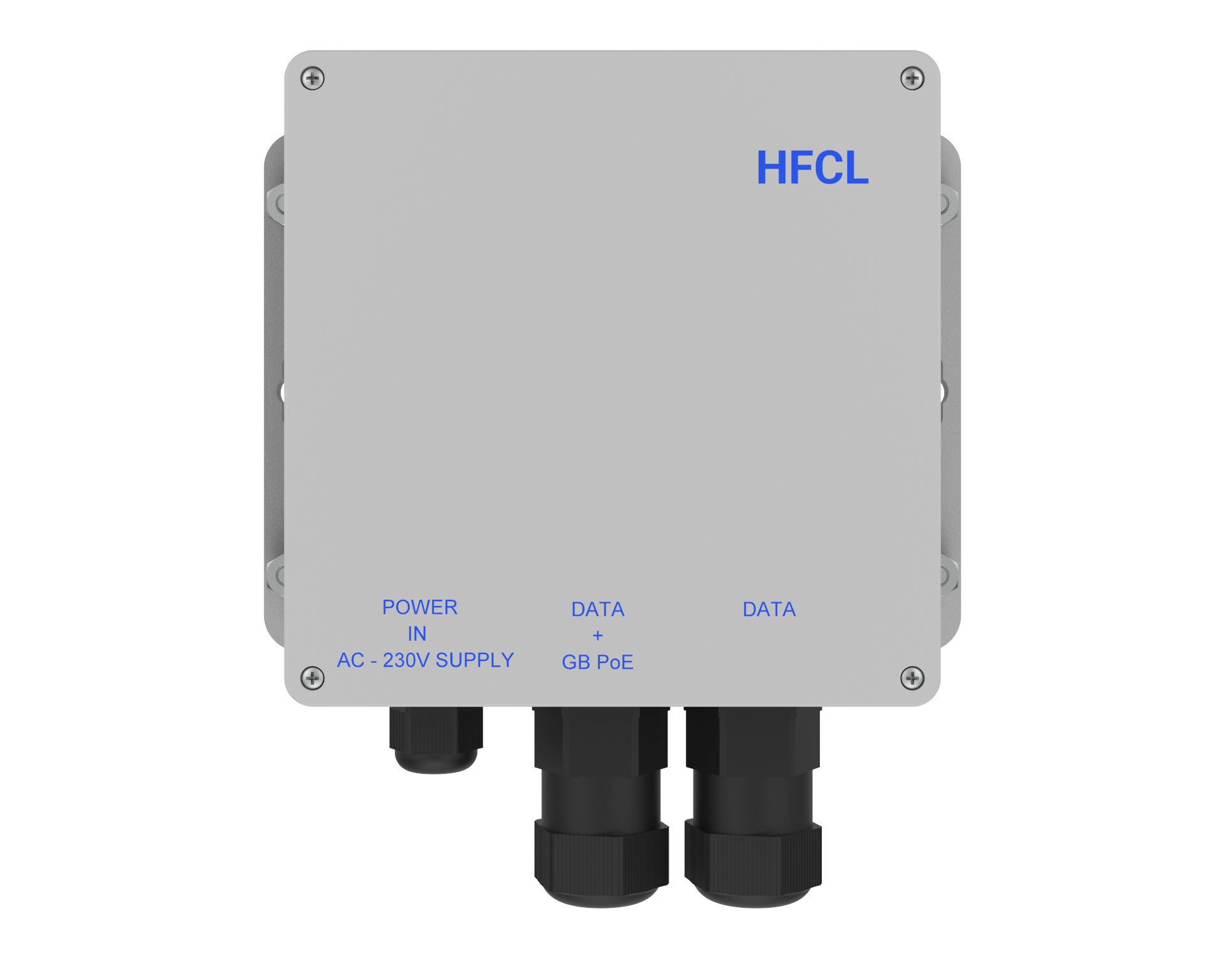

Outdoor

HF-PoE30-AC/DC

IEEE802.3af / IEEE802. 3at- 4 pairs

All limited links

Full protection OCP (Over-Current-Protection) & OVP (Over-Voltage-Protection)

Antenna Variants

1Gb PoE
‍

IP Rating

IP65

Frequency Band

100-264V AC & 36-75V DC

Pole & Tower Mount support

-5°C to 55°C

Up/down Tilt support

6kV

Key characteristic

AC and DC

Key characteristic

Download

Outdoor with Fiber Port

HF-PoE30-AC/DC-10GS-2.5G

IEEE802.3af / IEEE802. 3at- 4 pairs

All limited links

Full protection OCP (Over-Current-Protection) & OVP (Over-Voltage-Protection)

Antenna Variants

2.5Gb PoE+ SFP Port
(Redundant 10Gb Fx Port)

IP Rating

IP65

Frequency Band

90-264V AC & 40-72V DC

Pole & Tower Mount support

-10°C to 55°C

Up/down Tilt support

6kV

Key characteristic

AC and DC

Key characteristic

Access Points PoE

Interface

‍

Power Requirement

‍

Physical Characteristics

‍
‍

Environmental Limits

‍
‍

Applicability
‍

Datasheet
‍

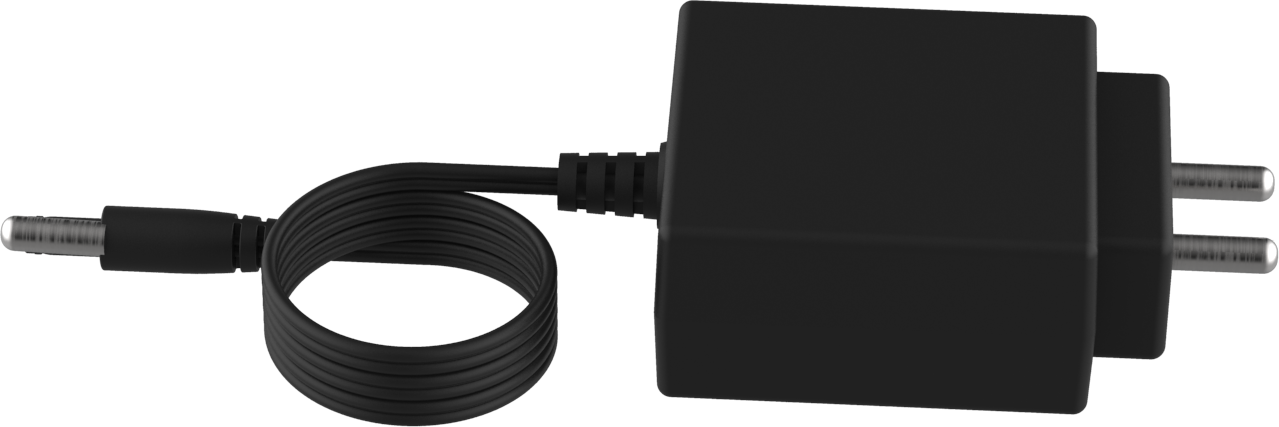

DC-12V/2A

12V/2A DC Universal Adapter

‍
‍

All limited links

Input Voltage: 100-280V AC
Output: 12V/2A DC (24W max)
‍
‍

Antenna Variants

Dimension: 75 x 55 x 30 mm
Weight: 0.01 Kg

‍

‍

IP Rating

Operating Temperature: -10°C to 50°C
Ambient Relative Humidity: 10% to 90% (non-condensing)
‍

Frequency Band

ion4xi, ion4xi_WP

Pole & Tower Mount support

Download

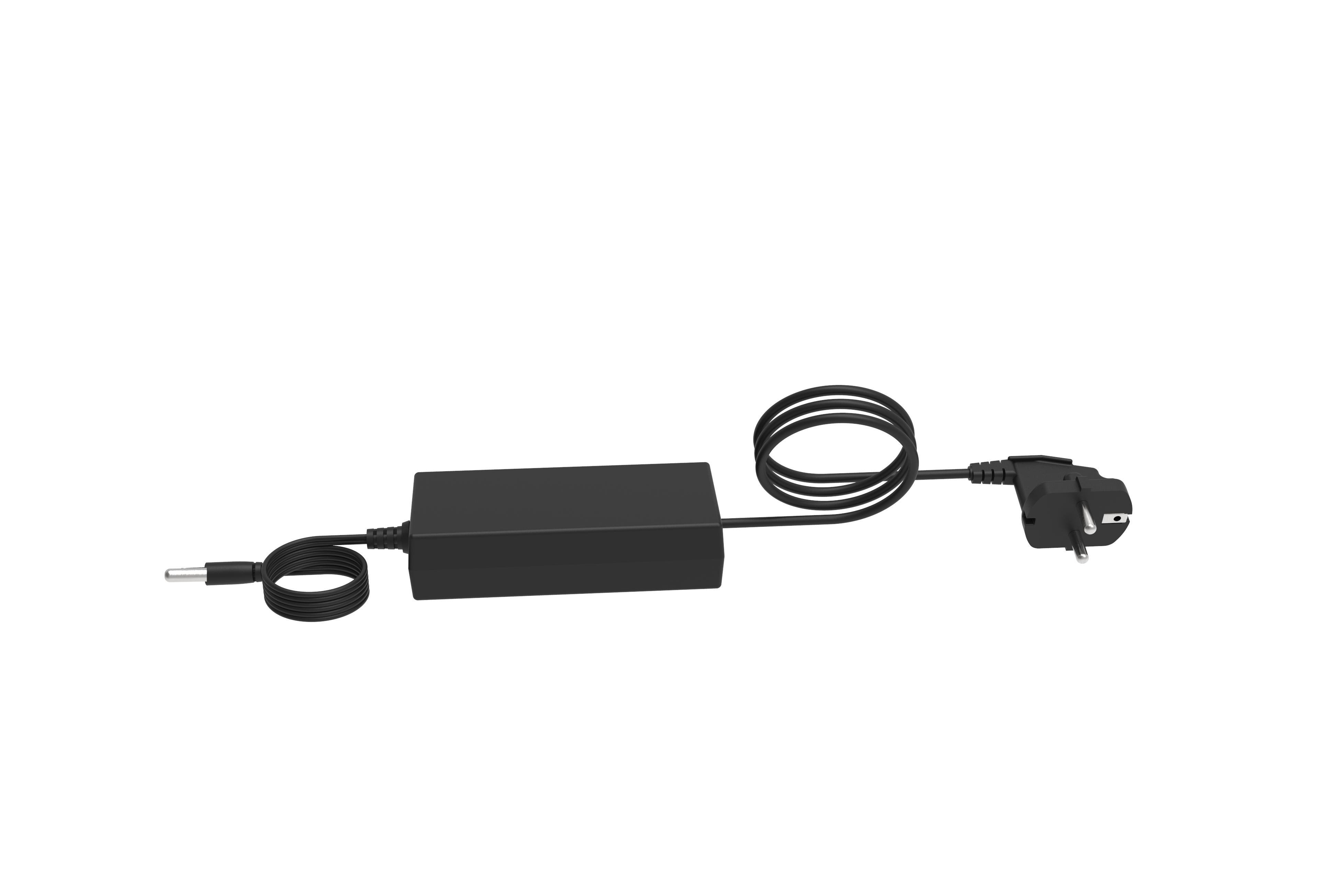

DC-12V/5A

12V/5A DC Universal Adapter

‍

All limited links

Input Voltage: 100-280V AC
Output: 12V/5A DC (60W max)
‍
‍

Antenna Variants

Dimension: 140 x 58 x 30 mm
Weight: 0.29 Kg

‍
‍

IP Rating

Operating Temperature: -10°C to 50°C
Ambient Relative Humidity: 10% to 90%(non-condensing)
‍

Frequency Band

ion12xi_h2
‍

Pole & Tower Mount support

Download

HF-PoE20-AC/DC

RJ45 Ports: 10/ 100/ 1000 BaseT(X) for PoE OUT and DATA IN
PoE Pinout Default: 1,2,4,5 V+ , V- for pin 3,6,7,8 (4 pairs)

All limited links

Input Voltage: 100-264 V AC for AC Model & 36-75 VDC for DC Model
Power Budget: Max. 20 W for 1 PDs consumption

Antenna Variants

Dimensions: DC-PoE: 145 x 82 x 45 mm and AC-PoE: 136 x 82 x 45 mm
Weight: DC-PoE: 0.32 kg & AC-PoE: 0.38 kg
‍

IP Rating

Operating Temperature: 0°C to 45°C
Storage Temperature: -40°C to 85°C
Ambient Relative Humidity: 5% to 95% (non-condensing)

Frequency Band

ion4xi, ion4xi_WP, ion4x_3, ion4x_2, ion4x, ion4xe

Pole & Tower Mount support

Download

HF-PoE30-AC/DC

RJ45 Ports: 10/ 100/ 1000 BaseT(X) for PoE OUT and DATA IN
PoE Pinout Default: 1,2,4,5 V+ , V- for pin 3,6,7,8 (4 pairs)

All limited links

Input Voltage: 100-264 V AC for AC Model & 36-75 VDC for DC Model
Power Budget: Max. 30 W for 1 PDs consumption

Antenna Variants

Dimensions: DC-PoE: 220 x 190 x 63 mm and AC-PoE: 220 x 190 x 63 mm
Weight: DC-PoE: 0.32 kg & AC-PoE: 0.48 kg
IP Rating: IP65 Protection*

IP Rating

Operating Temperature: -5°C to 55°C
Storage Temperature: -40°C to 85°C
Ambient Relative Humidity: 5% to 95% (non-condensing)

Frequency Band

ion4x_3, ion4x_2, ion4x, ion4xe

Pole & Tower Mount support

Download

HFCL-60WA-48V

RJ45 Ports: 100/ 1000/ 2500/ 5000/ 10000 BaseT(X) for PoE OUT and DATA IN
PoE Pinout: 1,2,4,5 V+ , V- for pin 3,6,7,8 (4 pairs)

All limited links

Input Voltage: 100 - 240V AC, 50-60Hz, Universal Input
Power Budget: Max. 60 W for 1 PDs consumption
‍

Antenna Variants

Dimensions: 210 x 82 x 45 mm
Weight: 0.67 Kg

‍
‍

IP Rating

Operating Temperature: -5°C to 55°C
Operating Humidity: 5% ~ 90% (non-condensing)

‍

Frequency Band

ion12xi_h2
‍

Pole & Tower Mount support

Download
