24-Port PoE+ L3 ManagedĀ Ā Switch | HSP-IO-24GE4XS-C3PA+
.svg)
Specifications
.svg)
Managed Switch with Flexible Uplink and Robust Security
L3 PoE+ Managed Switch
24x10/100/1000Mbps RJ45 Access Ports
4x1/10G SFP+ Uplink Ports
Upto 128 Gbps Switching Capacity
Upto 95.23 MPPS full Duplex Throughput
1x Console Port
1x RJ45 Management Port
Advanced Routing & Switching Capabilities
OSPFv2/v3
RIPv1/v2
IPv4/IPv6 Static Routes
Inter VLAN
DHCP Server, Relay and Client
Versatile Layer 2 Features
VLAN - MAC Based, Protocol Based, Voice VLAN, Private VLANs
L2 Loop Avoidance (STP/RSTP/MSTP)
ERPS (ITU G.8032)
IGMP v1/v2/v3 Snooping
802.1q and QinQ
QoS - Classification, Marking, Policing, and Shaping
Durable and Efficient Hardware Design
0ā°C to +55ā°CĀ Operating Temperature
1U Rack Mountable
Integrated Single AC Power Supply (100-240 VAC)
High-Capacity Power Delivery
PoE Budget - 370W
Per Port PoE Configuration and Scheduling
Persistent PoE and Power Delay (to let the device boot)
Auto PoE Check and Reboot if Device does not Respond
Comprehensive Security Features
TACACS+ / RADIUS AAA
DHCP snooping, Dynamic ARP Inspection
Port Security, Sticky MAC, IP-MAC Binding
L2/L3/L4 ACL with Extended Features
Smart Network Management
WEB GUI, CLI
SNMPv3, RMON, sFlow
Dual Stack (IPv4 and IPv6) Management
Ethernet OAM 802.3ah (CFM)

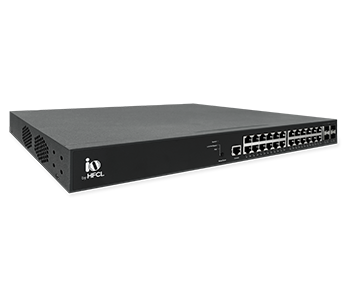

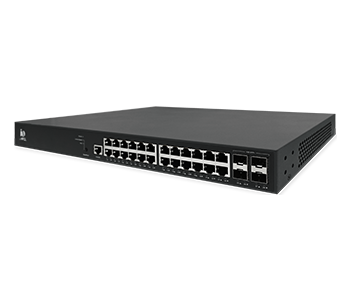

Physical Interface
Managed Switch with Flexible Uplink and Robust Security
PoE+ L3 Managed Switch
24 Gigabit Ethernet Access Port
4 x 1/10 G SFP+ Uplink Ports
Upto 128 Gbps Switching Capacity
Upto 95.23 MPPS full Duplex Throughput
1x Console Port
1x RJ45 Management Port
Routing
Advanced Routing & Switching Capabilities
Routing Table for IP Address Information
DHCP Server, Relay and Client
RIPv1 / v2 Dynamic Routing
OSPFv2 / v3 Dynamic Routing
Inter-VLAN Routing
L2 Features
Versatile Layer 2 Features
MAC Table for MAC Address Information
STP/RSTP, MSTP, ERPS
IGMP v1/v2/v3 snooping
802.1q and QinQ
QoS ā Up to eight priority queues
DesignĀ Parameters
Durable and Efficient Hardware Design
0ā°C to +55ā°C Operating Temperature
1U Rack Mountable

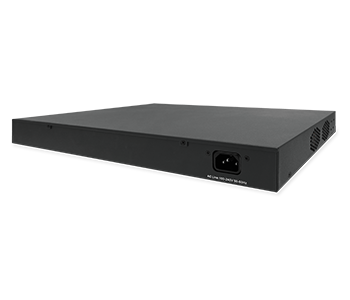

Integrated Single AC Power Supply (100-240 VAC)
PoE
High-Capacity Power Delivery
PoE Budget - 370W
Per port PoE configuration and scheduling
Security
Comprehensive Security Features
TACACS+ / RADIUS AAA
DHCP snooping, Dynamic ARP Inspection
Port Security, Sticky MAC, IP-MAC Binding
Management
Smart Network Management
WEB GUI, CLI
SNMPv3, RMON, sFlow
Dual Stack (IPv4 and IPv6) Management
Ethernet OAM 802.3ah
Variants
Tailored for unique needs
HSP-IO-24GE4XS-C3A+ : Integrated Single AC Power Supply (100-240 VAC)
Applications
Railways
Operational Backbone
Supports secure, segmented connectivity across operational areasĀ Ā ensuring reliable communication between critical infrastructure points.
Corporate Networks
Team Infrastructure
Ideal for connecting workstations and internal systems enabling consistent performance and centralized access control across teams and roles.

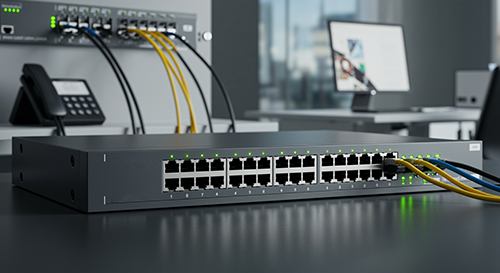

Triple Play
Voice, Video, Internet
Deliver voice, video, and internet services through a single, reliable connection ā keeping services separate and easy to manage.
BFSI
Branch Access
Connects staff systems, ATMs, and support desks in branch offices ā providing reliable and secure access to central systems from a single switch.
