802.11ax
5.1 to 5.9 GHz Frequency Band
2x2 MIMO
Upto 1024 QAM Modulation
1 Gbps Peak Data Throughput
20/40/80 MHz Channel Width

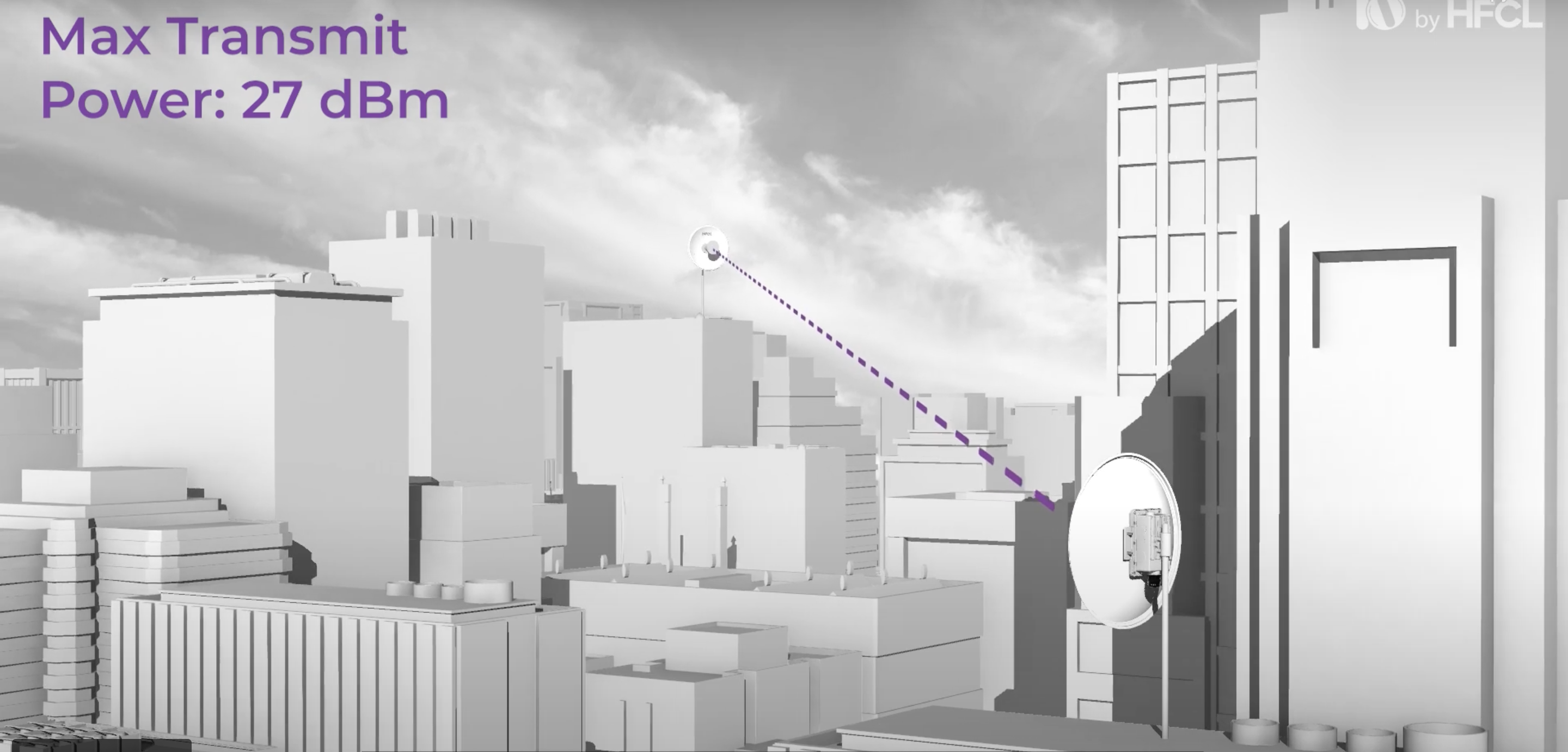

Upto 27 dBm Tx Power
18 dBi Small form Factor Flat Panel Integrated Antenna
1 x 1 GbE
IEEE 802.3at, 48V Indoor/Outdoor AC/DC PoE
6 kV Surge Protection
IP67 Protection
Dynamic Channel Selection (DCS)
Dynamic Data Rate Selection (DDRS)
Automatic Tx Power Control (ATPC)
Automatic Channel Selection (ACS)
Hitless Channel & Modulation Change
Spectrum Analyser
Y1731- Bandwidth Notification Message
4 level Priority QoS
IPv 4 & 6 support
QinQ, Trunk, Access, Transparent and Management VLAN
Jumbo Frame up to 9000 Bytes
AES-256
WPA2/3
MAC Based Access Control
Web GUI
CLI
EMS (SNMPv2/v3)
Dying Gasp
GPS
Temperature Sensor
Extended Temperature
Note: Variants can be Combined to Meet Unique Deployment Needs
802.11ax
5.1 to 5.9 GHz Frequency Band
2x2 MIMO
Upto 1024 QAM modulation
1 Gbps Peak Data Throughput
20/40/80 MHz Channel Width
Upto 27 dBm Tx Power
18 dBi small form factor flat panel Integrated Antenna
1 x 1 GbE
IEEE 802.3at, 48V Indoor/Outdoor AC/DC PoE
6 kV Surge Protection
IP67 Protection
Dynamic Channel Selection (DCS)
Dynamic Data Rate Selection (DDRS)
Automatic Tx Power Control (ATPC)
Automatic Channel Selection (ACS)
Hitless Channel & Modulation change
Spectrum Aanalyser
Y1731- Bandwidth Notification Message
4 level Priority QoS
IPv 4 & 6 support
QinQ, Trunk, Access, Transparent and Management VLAN
Jumbo frame up to 9000 Bytes
AES-256
WPA2/3
MAC based access control
Web GUI
CLI
EMS (SNMPv2/v3)
Dying Gasp variant
GPS
Temperature sensor variant
Extended temperature variant (Note: variants can be combined to meet unique deployment needs)
Telco
Accelerate your network expansion with scalable, high-performance wireless backhaul optimized for 4G and 5G connectivity.
Enterprise
Power your business-critical applications with secure, high-speed wireless infrastructure built for reliability and scalability.
ISPs
Deliver high-capacity, secure point-to-point connectivity—rapid deployment, exceptional reliability.
Industries
Reliable, high-throughput connectivity for industrial sites—purpose-built point-to-point links for maximum uptime.
